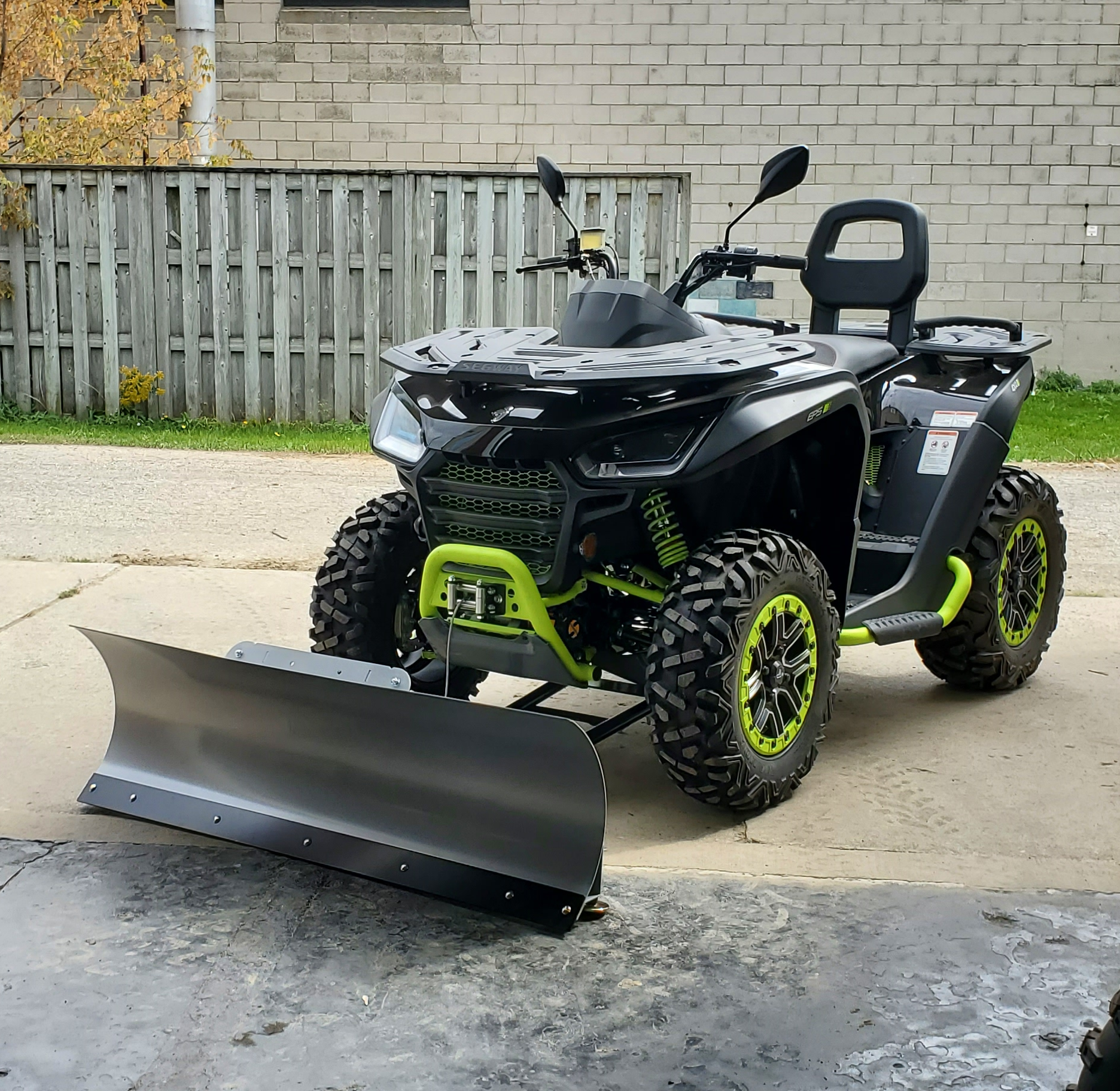

54" KFI Plow System for Segway Snarler ATVs - Complete Kit

This Kit Includes:
1x KFI 54" Pro-S Steel Straight Blade
1x KFI ATV Push Tube
1x KFI Plow Mount for Segway Snarler ATVS

Straight Blade Specifications:
100% MADE IN USA
Pushes snow straight ahead or to the sides up to 25 degrees
Added gussets for the wider width
The 66" & 72" blades include a 7" high 2-ply top rubber flap
Measures 16” Vertical blade face height with an approximate 21” height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3"-diameter grade-50 steel skid plates
Blade Constructed of 11 ga steel
3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
2-Year KFI Warranty

ATV Push Tube Specifications:
Mid-Mount Design with 40-50% more lift height than our competitors Mid-Mount System
100% MADE IN USA
Heavy Duty 1-1/2" 11 Gage Steel Tubing
Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
6" Diameter Zinc Plated Rotator Bushing
Easy-Pull Pin Blade angle adjustment
Multi-position Plow Lift Bracket
6 five degree blade pitch adjustments
5 blade angle positions that rotate the blade up to 25 Degrees
Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
Powder Coated Black for supreme durability
Complete installation instructions included
All mounting hardware included
Also Works with Cycle Country ATV Mid-Mounts
2-Year KFI Warranty
